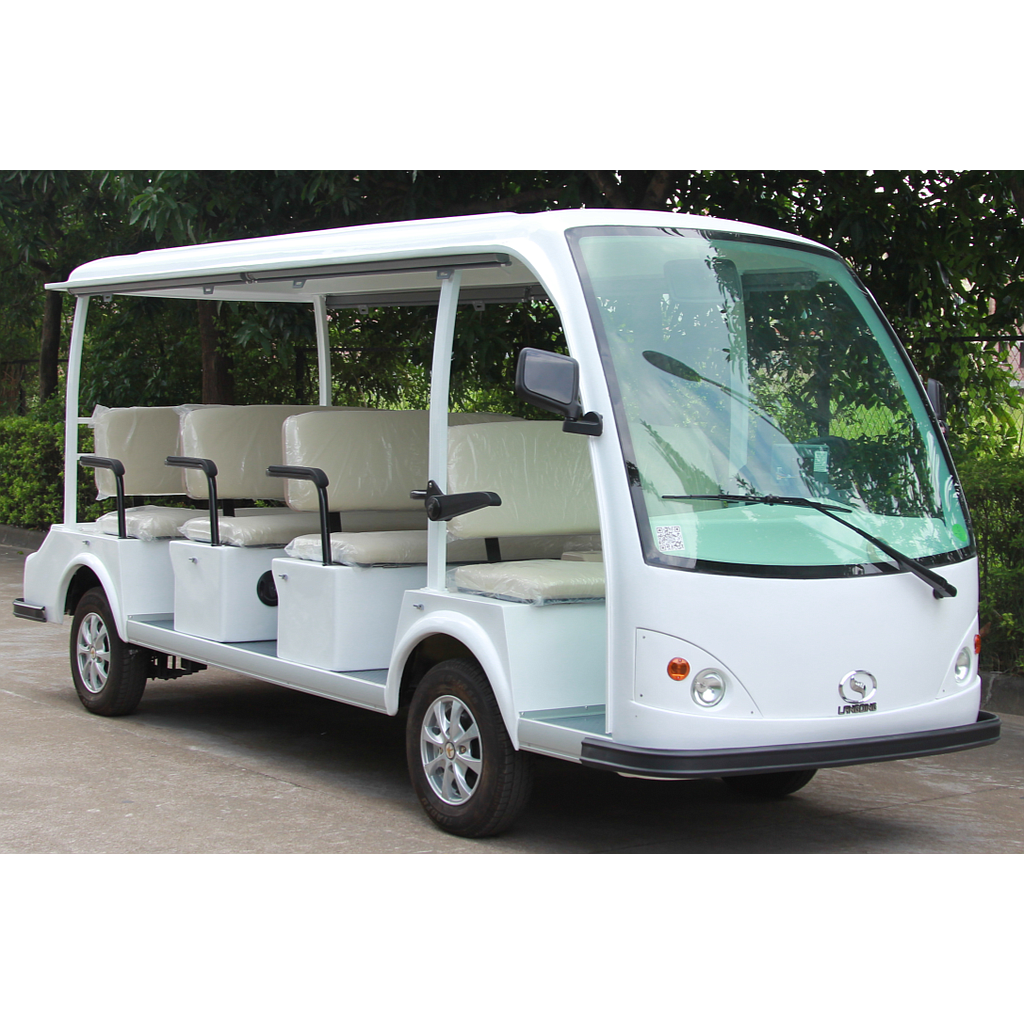

Electrical Bus -11 seat -72V /7.5KW-(90-110)km

electrical system
Motor: 72V 7.5kW series excitation high torque low speed motor.
Battery: 12 6v200ah large capacity deep circulation tubular batteries.
Electric control system: Curtis 1205m-6401 72V 400A.
Charger: full automatic high-frequency switching charger, with input voltage of AC 220V 50 ~ 60Hz and output of DC 72V 25A.
Lighting and warning system: headlamp, turn signal, rear combination lamp, reversing buzzer and electric horn.
Sound system: Radio and player with MP3 playback function, equipped with 2 speakers.
Instrument switch system: FRP shaped instrument panel, voltmeter, ammeter, instrument indicator, combination switch and forward / backward switch.
Accelerator: The original electronic control supporting accelerator (resistance type) has stable performance and good acceleration performance.
Wiper: The wiper with automatic reset function has a large wiping area.
Car body system
Chassis frame: Professional electric vehicle chassis design, high-strength steel pipe welding structure, anti rust electrophoretic paint baking treatment.
Body exterior: High strength FRP body.
Front axle and suspension: McPherson independent suspension, coil spring + barrel hydraulic damping.
Rear axle and suspension: Directly connected 24 tooth large reduction ratio (12.49:1) integral rear axle, leaf spring + barrel hydraulic shock absorption suspension.
Braking system: Hydraulic double circuit four-wheel drum brake with mechanical parking (hand brake) is adopted.
Steering system: Rack and pinion steering gear.
Front windshield: Double layer laminated safety glass for automobile.
ceiling: Double sided FRP.
chair: High density polyurethane foam, wrapped with wear-resistant and waterproof leather fabric.
Handrail: The iron pipe handrail is equipped with PU handrail pad.
Floor: The bamboo plywood floor is covered with anti-skid floor leather.
Rearview mirror: Left and right manual exterior rearview mirrors.
Tires: Reinforced vacuum radial tire, specification and model: 155 / 80 R12, equipped with aluminum alloy rim.
other: Assemble front and rear bumper and sunshade. Optional iron rim.
Basic technical parameters
long × wide × Height: 4,580 × 1,430 × 1940mm
Number of seats: 11 seats
Curb weight: 1170 kg
Total mass at full load: 2050kg
wheelbase: 2650 mm
Front track: 1210 mm
Rear track: 1200mm
Minimum ground clearance: 150mm
Minimum turning radius: 5.7m
Braking distance: ≤4.5m
Maximum speed: 28 km / h
Maximum driving range: 100km
Charging time: 8～10h
Maximum noise: ≤75 dB
Climbing capacity (full load) ： 20％
