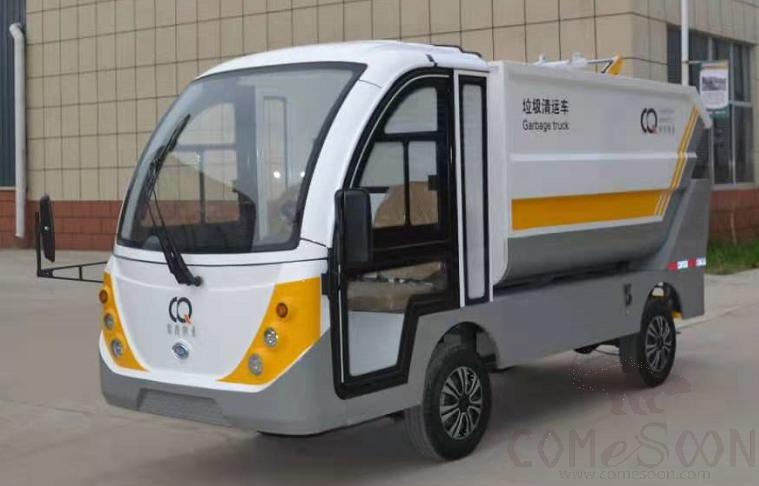

Garbage truck - electric -7.5kw-HRCD-GD02

Electrical system
Electric control ： Full intelligent controller
Battery: 6v200ah / piece, 12 pieces / 72V (maintenance free battery)
electric machinery ： 7.5kW AC motor (downhill speed limit and anti sliding function)
battery charger ： 72v-30a vehicle mounted fully intelligent charger
Charging time ： 8-10 hours (80% discharge rate)
Technical parameters
Charging input voltage ： 220V
Length * width * height (mm) ： 4300*1450*2100
Container size (mm) ： 2800*1450*1300
Volume of dustbin M ³ ： 4.5 m ³
Vehicle load ： 2000kg
Front and rear track width ： 1235/1235mm
wheelbase: 2640mm
Minimum ground clearance: 150mm
Braking distance: ≤4m
Allowable passenger : 2 people
Unloading time (s) : 30 seconds
Maximum travel speed : 30km/h
Maximum climbing gradient : 20%
Minimum turning radius : 8.5m
Driving range : 100-120 km
Body system
chair : First row seats (1 + 1, cold foamed high-density and high rebound sponge, angle adjuster + gray seats equipped with safety belts)
car body : Steel frame + injection shell / ABS engineering plastic molded parts automobile double-layer laminated windshield glass
meter : LCD instrument display (including voltage, current, vehicle speed, mileage, light, front and rear commutation and other signals)
Rearview mirror : Large field adjustable exterior rearview mirror
Lights and signals ： High brightness LED combined front lamp, turn signal lamp, combined rear tail lamp, brake lamp, electric horn and reversing buzzer
Audio: Car premium audio, car MP3 player and professional speaker
switch ： Start switch, light and wiper combination switch, forward and backward gear switch
door ： Removable metal door + aluminum alloy sliding window (2 doors)
Frame: Special plastic spraying frame for steel structure
Steering wheel: Polyurethane foam steering wheel
