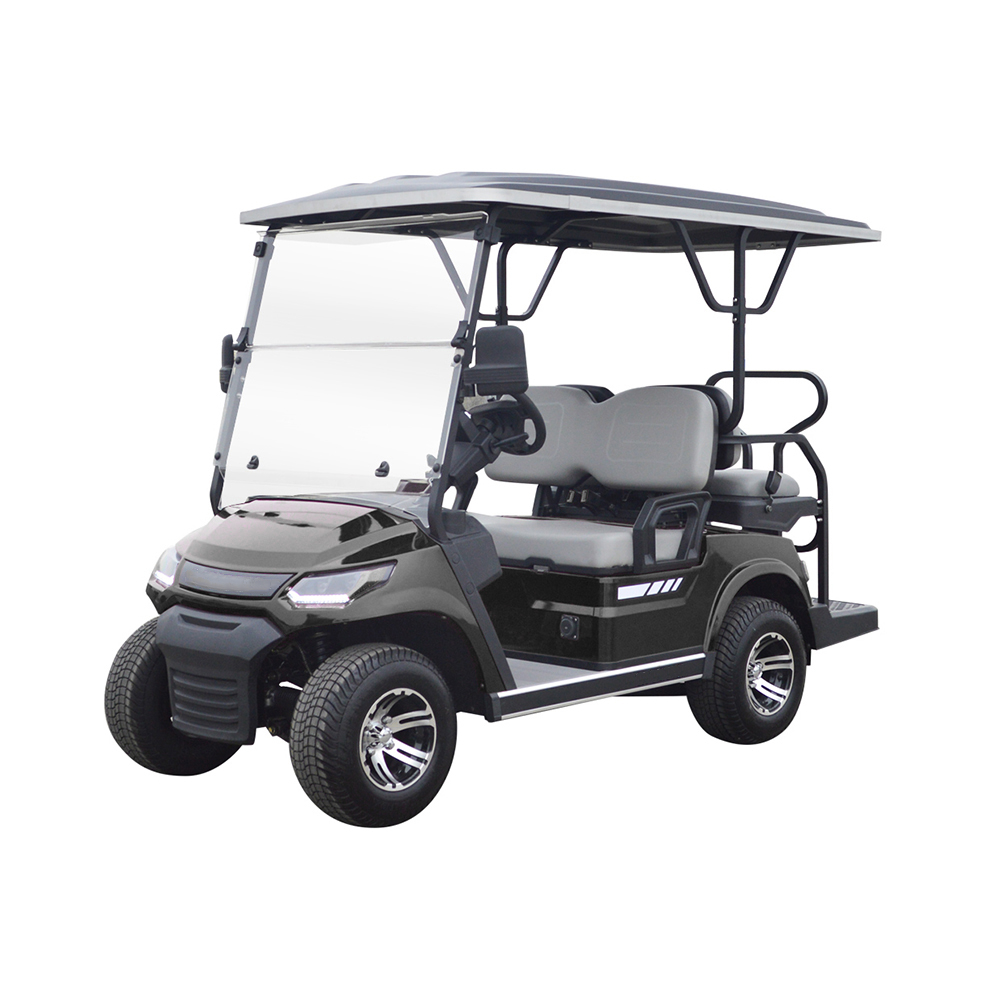

Golf Car- 2+2seat - 4KW - (80-100)km

Electric System.
Controller: AC controller 48M350B—350A
Battery: Maintenace-free battery 6pcs 8V 150AH(3Hr rate)
Motor: AC motor 48V/4KW
Charger Intelligent on-board charger :48V/25A
DC Converter: DC Converter 48V/12V-180W
Body configuration
Windshield&Wiper: Organic glass or optional laminated windshield+wiper
Roof: Aluminum alloy side cover+ PP material injection roof
Seat:leather
Floor: Aluminum anti-skid floor, high-strength structure, corrosion resistance, aging resistance
Body: Automatic industrial special PP plastic injection; matte black aluminum roof brackets; Aluminum alloy cargo box
Side mirror: Manually adjustable, foldable Right&Left side mirrors
Light & Signal: LED front combination lights (low beam, high beam, turn signal, daytime running lights, position lights)LED rear lights (brake lights, position lights, turn signals); snail horn, reversing buzzer
Dash Board: Injection molding instrument panel, ignition key switch, single arm combination switch, gear switch, cup holder; dual USB plug, 12V power supply. Digital speed meter
Steering system: Bidirectional rack and pinion steering system, automatic gap compensation function
Brake system: Four-wheel hydraulic brake, four-wheel disc brake + electronic brake parking
Front suspension: Double swing arm independent front suspension + coil spring + cylinder hydraulic shock absorber
Rear suspension: Integral rear axle, speed ratio 12.31: 1, helical spring shock absorber + cylinder hydraulic shock absorber + rear stabilizer bar
Tyre diameter: 205/65-10（diameter 520mm）10” steel rim
Parameter
L*W*H: 2785*1210*1910mm
Loading passenger: 4 person
Max speed km/h : 25km/h
Mileage/km: 80—100km（flat road）
Max climbing ability: 25%
Parking slope ability: 25%
Weight(with battery): 585kg
Brake stability: 1.6m
Mini ground clearance: 120mm
Wheel base: 1670mm
Mini turning radium（m）: 3.2m
Braking distance :＜6m
Wheel track: Front 905mm/Rear1000mm
Energy consumption (per 100km): 8kwh
