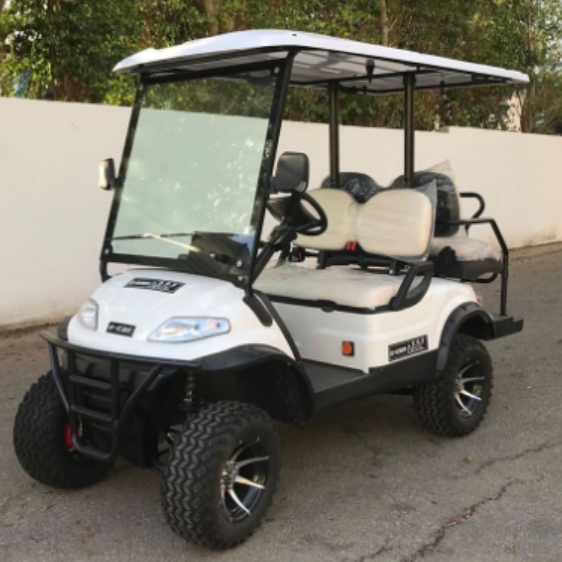

Golf Cart - 2+2 seat - Off-road vehicle - 4KW - (80-90KM)

System：48V 4KW AC system
Key Components
Battery：GEL battery 8Vx6pcs
Motor：4KW AC motor
Controller：Toyota controller 48M-350A
Tranaxle：transaxle with 12.31:1 gear ratio
Charger：Offboard charger 48V/20A
Performance：Passenger capacity
Range (loaded) based on flat road at a speed of 20km/h ：80-90km
Max. speed @12.31:1 gear ratio：22-24km/h
Minimum turning radius (m)：2.9m
Max. climbing ability (loaded) ：20%
Max. movement after brake：<10M
Cart's weight(w/batteries)：530kgs
Dimensions
Overall dimensions:LWH (mm)：2760*1305*2020mm
Min. ground clearance (mm)：160
Wheelbase (mm)：front 1060mm/ rear1050mm
tread: 1720mm
Body and Frame
Frame：Welded high yield strength tubular steel
Body：“PP” Alloy automatic industrial special plastic
Roof：PP plastic injection, painted same color as body
Windshield：hinged windshield
Large Seats
1) backrest and cushion：plastic foam + artificial leather
2) armrest：rubber
3) plastic seat bottom
Floor ：rubber
Mirror outside
Electric system
Reversing alarm
Speed meter
Charger：China origin,input 220V-240V 50Hz,output 48V/20A
Steering and Suspension
Steering system：Dual automotive-style strut and self-adjust rack-and pinion steering
Brake system：Dual rear wheel mechanical drum brakes ,self-adjusting with non-asbsestos linings
Accelerator：electric accelerator
Suspension system：4 wheel independent Helical spring with hydraulic shock absorber
wheel & Tyre：12" aluminum rim and tire 22*11-12
Container loading qty
Qty/20'GP 8units
Qty/40'HQ 20units
