Refrigerated truck - totally enclosed - Lead acid dry battery - ABOUT1700L - Temperature control (- 18 ℃) - Mileage(60km) - No door design

Complete vehicle

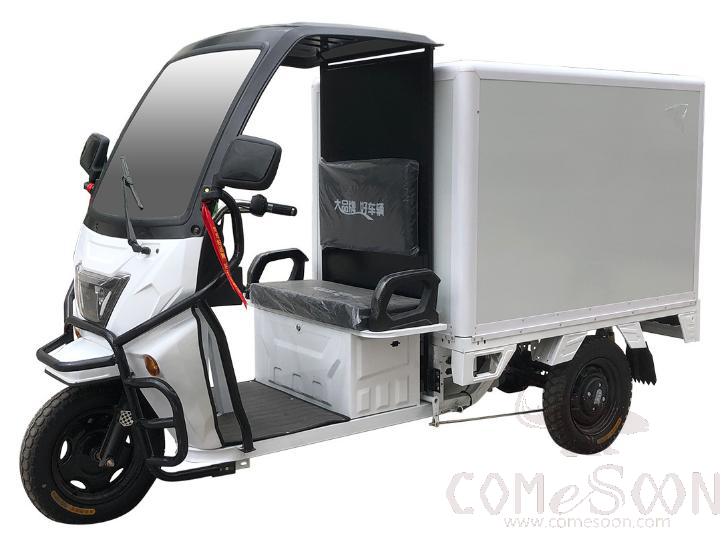

Appearance image: technical parameters of fully enclosed insulation vehicle
Bearing weight: load ≥ 500kg
Maximum speed: ≤ 26km / h
Reversing speed: ≤ 12 km / h
Continuous mileage: ≥ about 100km
Climbing gradient: ≤ 15 °
Vehicle weight: ≤ 330kg
Overall dimension: 2950 * 1200 * 1700mm
Track width: 1100mm
Wheelbase: 2000mm
Battery position: frame battery box
Ground clearance: ≤ 220mm
Refrigerator
Material: 40mm insulation board
Size: 1500 * 1200 * 1200mm
Door opening direction: side door opposite
Refrigerator lining: 304 shiny stainless steel
Compressor installation method: top of freezer + inside
Compressor power: 1000W
Battery
Battery type: Chaowei lead acid dry battery
Battery capacity: 100A
Battery voltage: 72V
electric machinery
Output power: 1200W
Motor voltage: 60V
controller
Specification requirements: 18 tubes
Rated voltage: 60V
Rearview mirror: special for insulated vehicle
Minimum refrigeration temperature: - 18 ℃
remarks:
The car of this model is fully enclosed and sealed, green and environment-friendly, and is suitable for urban logistics transportation and express transportation.
